MAD BSC 2207.5 – High-Speed FPV Racing & Freestyle Motors

Designed for pilots who refuse to compromise on top-end speed, the MAD BSC 2207.5 is a powerhouse built for 5-inch and 6-inch high-performance quads. By focusing on higher KV ratings (1950KV and 2100KV), this motor is optimized for explosive punch-outs and lightning-fast recovery during aggressive maneuvers.

With a rotor balance of <5mg and a high-torque 12N14P configuration, the BSC series delivers the "locked-in" feel required for competitive racing and technical freestyle.

Key Features:
Explosive Power: Optimized for 6S builds that need maximum thrust and high-RPM performance.
Ultra-Smooth Response: Precision-balanced rotors minimize vibrations, protecting your gyro and ensuring crystal-clear HD footage.
Built for Abuse: Features a high-strength M5 hollow shaft and high-temperature resistant windings to survive back-to-back high-throttle packs.
Premium Cooling: The open-base design maximizes airflow to keep your magnets cool and your performance consistent.

Which KV is right for you?
1950KV: Best for aggressive freestyle and all-around high-performance 6S flying. It offers a great balance of torque and top-end speed.
2100KV: Recommended for dedicated racing or "speed-run" builds. This is a high-RPM beast that thrives on full-throttle inputs.

Technical Data:
Model: MAD BSC 2207.5 V1.0
Configuration: 12N14P
Stator Diameter: 22mm
Stator Height: 7.5mm

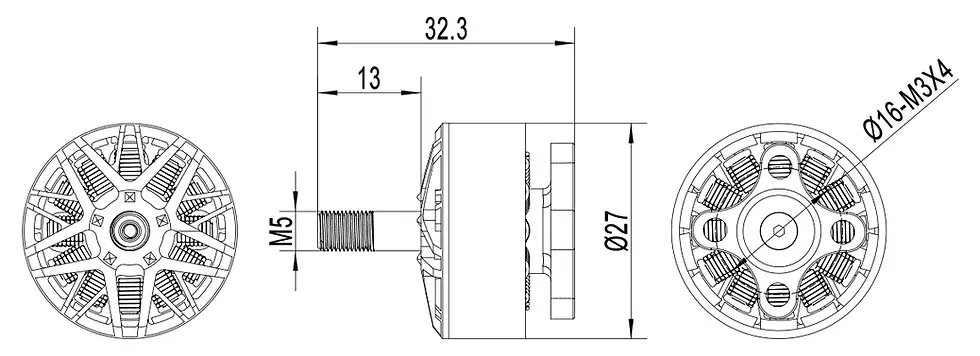

Motor Dimensions: $\phi$27mm x 32.3mm
Weight: 35.3g (including 150mm wire)
Shaft Diameter: 4mm (Internal), M5 (Prop Mount)
Max Thrust: 1770g (1950KV version)
Recommended ESC: 35A - 60A
Recommended Props: 5-inch to 6-inch
