Please note: does not include batteries. In order to operate it requires 2s battery or two 18650 cells.

Features

Available in ExpressLRS Backpack and MPM CC2500 versions

Preinstalled with EdgeTX firmware

18650 Batteries, all the power you need for hours of fun (Batteries not included)

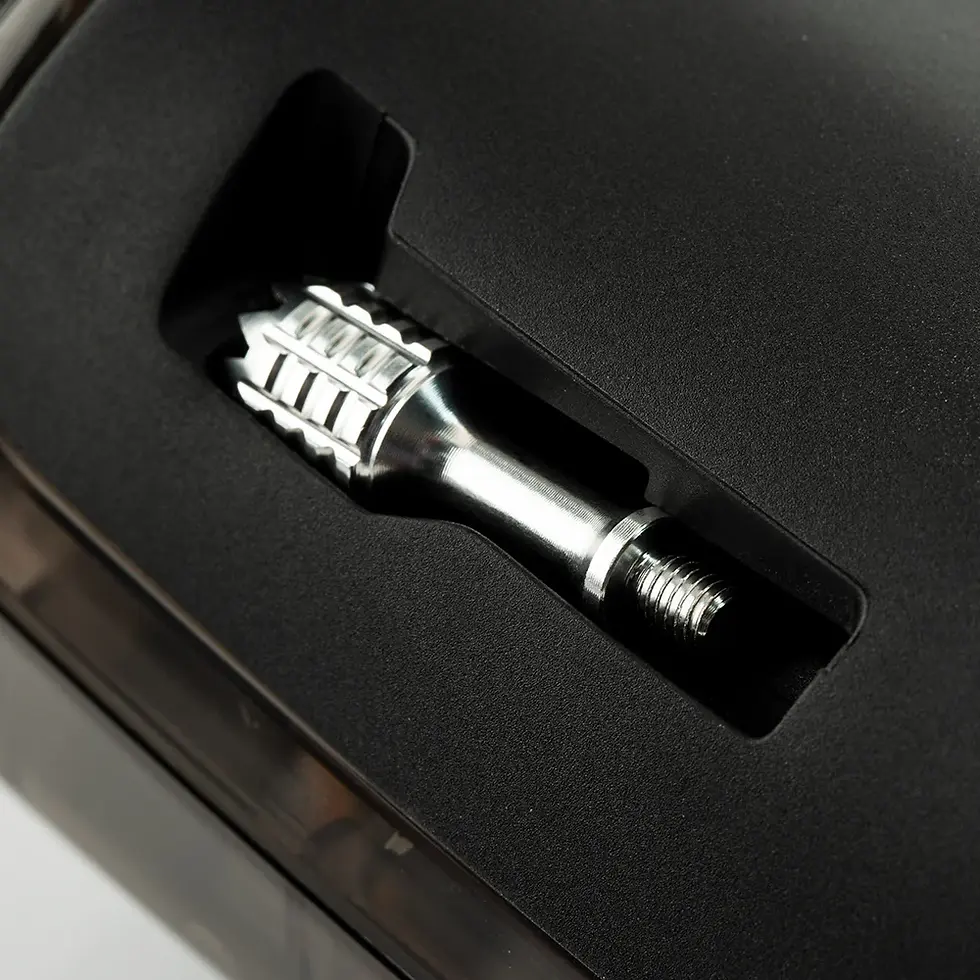

Portable and lightweight design with removable stick ends and foldable antenna

Features hall effect gimbals as standard for smooth cantering & precise response

Built-in LED lights help visualize your switch inputs

Backlit LCD Screen offering a perfect balance of size and functionality

Trim buttons for easy channel trimming

External Module Bay compatible with RadioMaster Nano-size modules and TBS Nano Crossfire/Nano Tracer

2 Stylish Colors of Charcoal & Transparent version and optional case colors in Blue, Pink, Green, and Orange to suit your style



Specifications

Item: Pocket Radio

Physical dimensions: 156.6*65.1*125.3mm (Folded size) /156.6*73.1*154.8mm (Unfold size)

Weight: 288 grams

Operating frequency: 2.400GHz-2.480GHz

Internal RF Options: CC2500 multi-protocol / ELRS 2.4GHz

Supported protocols: Module dependent

Operational voltage: 6.6-8.4v DC

Operating system: EdgeTX

Control channels: Maximum 16 (Receiver dependent)

Display: 128*64 Monochrome LCD

Battery: 2pcs 18650 batteries (Not included)

Charging: Built in USB-C QC3 Charging

Upgradable Firmware: Via USB or the included SD card

Gimbal: Hall-effect

Module bay: Nano size (Compatible with RadioMaster Nano-size modules, TBS Nano Crossfire / Nano Tracer )

Available with ExpressLRS and CC2500 Version

CC2500 (standard) Version supports all CC2500 protocols

ELRS (standard) is pre-installed with ExpressLRS ISM FW (Max power is hardware dependent)

About LBT version

CC2500 LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT & HoTT LBT

ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)



Gimbal Adjustment

A L-RTo switch M1/M2. Turn clockwise to disable self-centering (Throttle). Turn counterclockwise to enable self-centering (Elevator). B TTo adjust the throttle stick tension. Turn clockwise to increase stick tension. Turn counterclockwise to decrease stick tension.C UP-DOWNTurn clockwise to increase vertical stick tension.Turn counterclockwise to decrease stick tension.D LEFT-RIGHTTurn clockwise to increase horizontal stick tension.Turn counterclockwise to decrease stick tension.

Package Including

1 * Pocket Radio

1 * Custom Carry Pouch

1 * USB-C Cable

1 * Screen Protector

1 * Sticker

4 * Low Tension Springs

1 * Manual

Radiomaster Pocket / Crush ELRS M2

SKU: Radiomaster-Pocket
PriceFrom 420.00 ₪
