Specifications

ModelSpeedyBee Nano 2.4GHz RX
NameExpressLRS Receiver
Frequency2.4Ghz
AntennaT-antenna (54*78mm, 0.6g)
ChipSX1280+ESP8285
Power100mW
Input voltage5V
Antenna connectorIPEX1
Weight0.7 gram(without antenna)
Dimension10.4mm*18.4mm
Default FirmwareSpeedyBee Nano 2.4GHz RX 3.3.1



Light indicator

Double red blinkingbinding
Slow red blinkingpowering up but unlinked, no packages received from the transmitter
Solid redreceiver is connected, with signal received
Fast red flashingWi-Fi is turned on, and updating via Wi-Fi is available



PS.

To turn on Wi-Fi, wait for 60 seconds after powering on or long press button for 3 seconds
Quick to cut off the power 3 times, it enters the binding mode

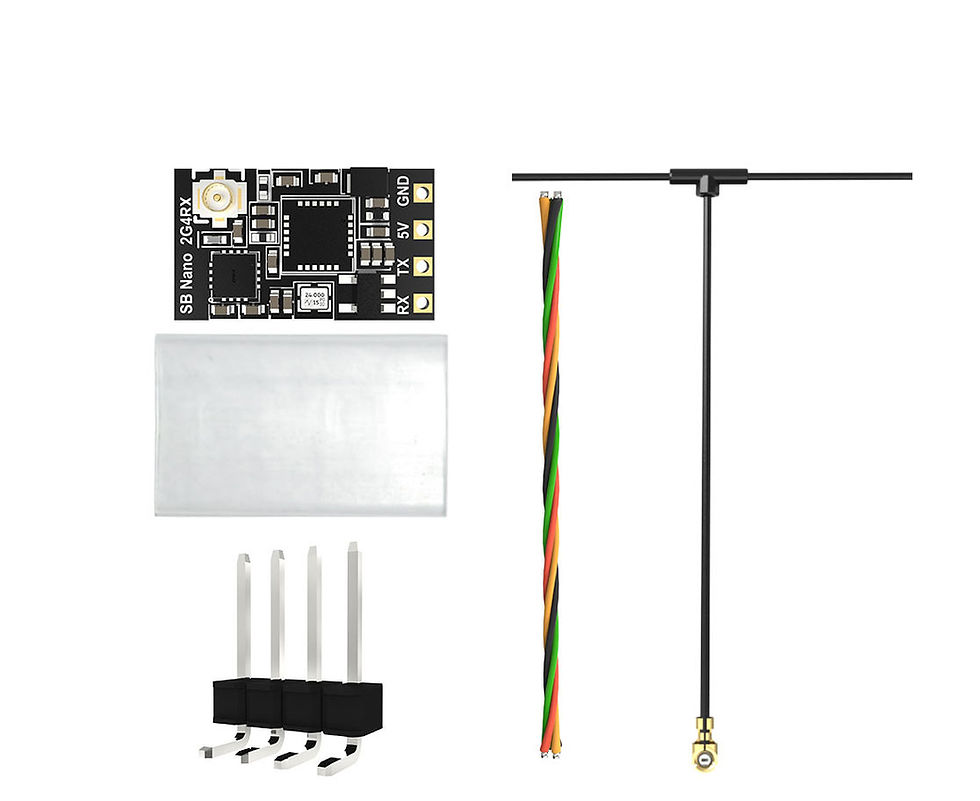

SpeedyBee Nano 2.4G ExpressLRS ELRS Receiver

SKU: ELRS-2G4-RX
80.00 ₪Price
